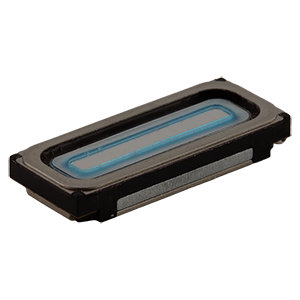

CMS-2008-018SP
20 x 8 x 3 mm, Rectangular Frame, .1 W, 8 Ohm, Nd-Fe-B Magnet, PEN Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 90 |
|
| Efficiency Testing | 0.1 / 0.5 |
|
| Nominal Input (W) | 0.1 |
|
| Max Input (W) | 0.15 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 280 |
|
| Mounting Style | Solder Pads |
|
| Cone Type | PEN |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 20 x 8 x 3 |
|
| Dimensions LxWxH (in) | 0.79 x 0.31 x 0.12 |
|
| Series | CMS-2008-018X |
|
| IP Rating | No IP Rating |
|
