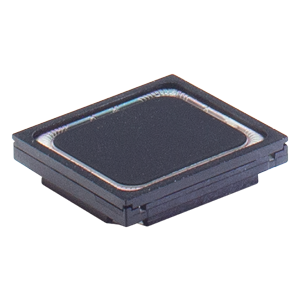

CMS-18163-24SP
18 x 16 mm, Rectangular Frame, 2 W, 4 Ohm, NdFeB Magnet, PEEK Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 104 |
|
| Efficiency Testing | 2 W / 0.1 m |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.2 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 1000 |
|
| Enclosure | Required |
|
| Mounting Style | Solder Pad |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 18 x 16 x 3.7 |
|
| Dimensions LxWxH (in) | 0.708 x 0.629 x 0.145 |
|
| Series | CMS-18163-24X |
|
| IP Rating | No IP Rating |
|
