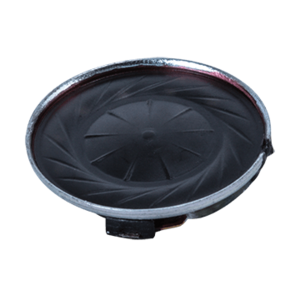

CMS-1536-0332S
15 x 3.6 mm, Round Frame, 0.3 W, 32 Ohm, Neodymium Magnet, PEI Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 92 (0.3 W / 0.1 m) |
|
| Nominal Input (W) | 0.3 |
|
| Max Input (W) | 0.5 |
|
| Impedance (Ohms) | 32 |
|
| Resonance Freq. (Hz) | 1000 |
|
| Enclosure | Recommended |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Spring Contact |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (in) | 0.59 x 0.59 x 0.14 |
|
| Dimensions LxWxH (mm) | 15 x 15 x 3.6 |
|
| IP Rating | No IP Rating |
|
