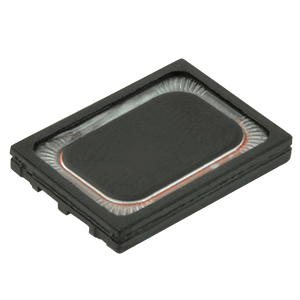

CMS-15113-078SP-67
15 x 11 mm, Rectangular Frame, 0.7 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Solder Pads, IPX7, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 91 (0.7 W / 0.1 m) |
|
| Nominal Input (W) | 0.7 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 700 |
|
| Enclosure | Required |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 15 x 11 x 3 |
|
| Dimensions LxWxH (in) | 0.59 x 0.43 x 0.12 |
|
| IP Rating | IPX7 |
|
| Series | CMS-15113-078X-67 |
|
| Mounting Style | Solder Pads |
|
