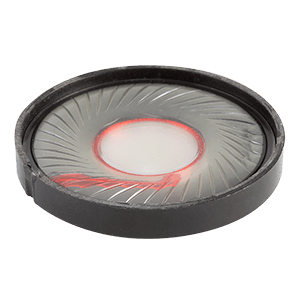

CMR-3466-1050SP-X7
34 x 6.6 mm, Round Frame, 0.01 W, 50 Ohm, NdFeB Magnet, PEI Cone, IPX7, Receiver
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Testing | 0.001 W / Over Ear |
|
| Efficiency Type S.P. Level (dB) | 127 |
|
| Max Input (W) | 0.02 |
|
| Impedance (Ohms) | 50 |
|
| Nominal Input (W) | 0.01 |
|
| Resonance Freq. (Hz) | 100 |
|
| Enclosure | Recommended |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Mounting Style | Solder Pads |
|
| Dimensions LxWxH (in) | 1.34 x 1.34 x 0.26 |
|
| Dimensions LxWxH (mm) | 34 x 34 x 6.6 |
|
| Special Features | Receiver |
|
| IP Rating | IPX7 |
|
