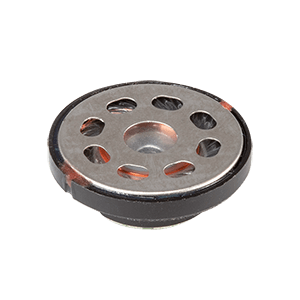

CMR-2353G-2032SP
23 x 5.3 mm, Round Frame, 0.02 W, 16 Ohm, NdFeB Magnet, PET Cone with Grill, Receiver
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 135 |
|
| Efficiency Testing | 0.02 W / Over Ear |
|
| Nominal Input (W) | 0.2 |
|
| Max Input (W) | 0.3 |
|
| Impedance (Ohms) | 32 |
|
| Resonance Freq. (Hz) | 440 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Pads |
|
| Cone Type | PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 23 x 23 x 5.3 |
|
| Dimensions LxWxH (in) | 0.905 x 0.905 x 0.208 |
|
| IP Rating | No IP Rating |
|
| Special Features | Receiver |
|
| Series | CMR-2353X-2032SP |
|
