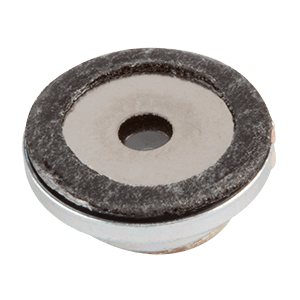

CMR-1005-532SP
10 x 5.1 mm, Round Frame, 0.005 W, 32 Ohm, NdFeB Magnet, PET Cone, Receiver
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 103 |
|
| Nominal Input (W) | 0.005 |
|
| Max Input (W) | 0.01 |
|
| Impedance (Ohms) | 32 |
|
| Resonance Freq. (Hz) | 122 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Pads |
|
| Cone Type | PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 10 x 10 x 5.1 |
|
| Dimensions LxWxH (in) | 0.39 x 0.39 x 0.2 |
|
| Special Features | Receiver |
|
| IP Rating | No IP Rating |
|
