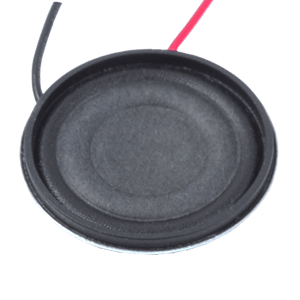

CLS0301-L152
30 mm, Round Frame, 1.0 W, 8 Ohm, Neodymium Magnet, Paper Cone, Wire Leads, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 86 (1 W / 0.5 m) |
|
| Max Input (W) | 2 |
|
| Nominal Input (W) | 1 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 550 |
|
| Cone Type | Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 30 x 30 x 3 |
|
| Dimensions LxWxH (in) | 1.18 x 1.18 x 0.12 |
|
| Mounting Style | Wire Leads |
|
