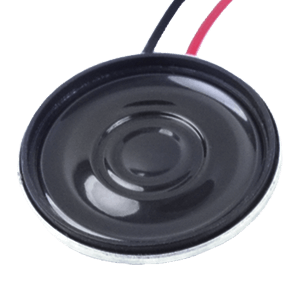

CLS0282MA-L152
28 mm, Round Frame, 0.5 W, 8 Ohm, Neodymium Magnet, PET Cone, Wire Leads, Speaker
Specifications
Type | Description | |
---|---|---|
S.P. Level (dB) | 85 (0.5 W / 0.5 m) |
|
Max Input (W) | 1 |
|
Nominal Input (W) | 0.5 |
|
Impedance (Ohms) | 8 |
|
Resonance Freq. (Hz) | 550 |
|
Cone Type | PET |
|
Magnet Type | Nd-Fe-B |
|
Frame Shape | Round |
|
Dimensions LxWxH (mm) | 28 x 28 x 6 |
|
Dimensions LxWxH (in) | 1.1 x 1.1 x 0.24 |
|
Mounting Style | Wire Leads |
|
