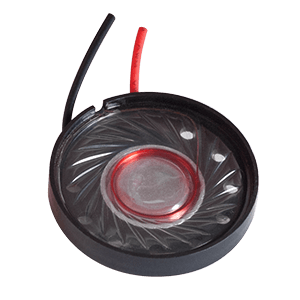

CLS0271M-L152
27 mm, Round Frame, 0.1 W, 8 Ohm, Neodymium Magnet, PET Cone, Wire Leads, Speaker
Specifications
Type | Description | |
---|---|---|
S.P. Level (dB) | 89 (1 W / 0.5 m) |
|
Max Input (W) | 0.2 |
|
Nominal Input (W) | 0.1 |
|
Impedance (Ohms) | 8 |
|
Resonance Freq. (Hz) | 430 |
|
Cone Type | PET |
|
Magnet Type | Nd-Fe-B |
|
Frame Shape | Round |
|
Dimensions LxWxH (mm) | 27 x 27 x 5.8 |
|
Dimensions LxWxH (in) | 1.06 x 1.06 x 0.23 |
|
Mounting Style | Solder Pads |
|
