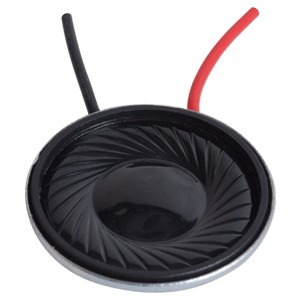

CLS0231MA-1-L152
23 mm, Round Frame, 0.5 W, 8 Ohm, Neodymium Magnet, PET Cone, Wire Leads, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Enclosure | Not Required |
|
| S.P. Level (dB) | 89 (1 W / 0.5 m) |
|
| IP Rating | No IP Rating |
|
| Max Input (W) | 1 |
|
| Nominal Input (W) | 0.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 670 |
|
| Cone Type | PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 23 x 23 x 5 |
|
| Dimensions LxWxH (in) | 0.91 x 0.91 x 0.2 |
|
| Mounting Style | Wire Leads |
|
