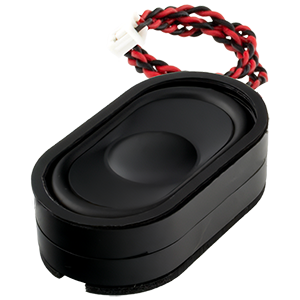

CES-362009-28L200B-67
36.1 x 20.4 mm, Rectangular Case, 2 W, 8 Ohm, Nd-Fe-B Magnet, PU and PEI Cone, Enclosed Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 103 |
|
| Efficiency Testing | 2 W / 0.1 m |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 1000 |
|
| Enclosure | Included |
|
| Mounting Style | Wire Leads with Connector |
|
| Cone Type | PU and PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Oval |
|
| Dimensions LxWxH (mm) | 36.1 x 20.4 x 9.3 |
|
| IP Rating | IP67 |
|
| Series | CES-362009-28X-67 |
|
