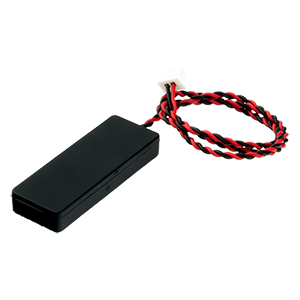

CES-281043-17L200B
28.1 x 10.5 mm, Rectangular Case, 1 W, 7 Ohm, Nd-Fe-B Magnet, PEEK Cone, Enclosed Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 93 |
|
| Efficiency Testing | 1 W / 0.1 m |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 7 |
|
| Resonance Freq. (Hz) | 1250 |
|
| Enclosure | Included |
|
| Mounting Style | Wire Leads with Connector |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 28.1 x 10.5 x 4.3 |
|
| IP Rating | No IP Rating |
|
| Series | CES-281043-17X |
|
Technical Docs
DatasheetFeatured Content
