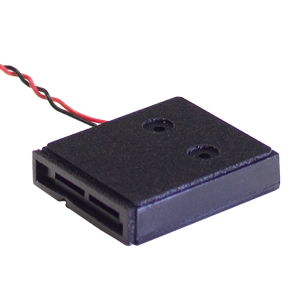

CES-24205-18-L200
24 x 20 mm, Rectangular Case, 1 W, 8 Ohm, Neodymium Magnet, PEEK Cone, Wire Leads, Enclosed Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 96 |
|
| Efficiency Testing | 1 W / 0.1 m |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 1000 |
|
| Enclosure | Included |
|
| Mounting Style | Wire Leads |
|
| Cone Type | PEEK |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 24 x 20 x 5 |
|
| Dimensions LxWxH (in) | 0.94 x 0.79 x 0.2 |
|
| IP Rating | No IP Rating |
|
