CDS-40288-L100

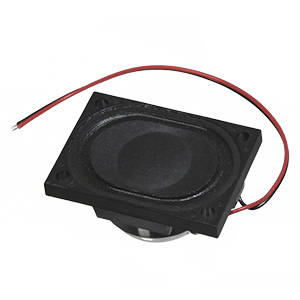

40 x 28.5 mm, Rectangular Frame, 6 W, 8 Ohms, Neodymium Magnet, Paper Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 84 (1 W / 0.5 m) |
|
| Max Input (W) | 8 |
|
| Nominal Input (W) | 6 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 650 |
|
| Enclosure | Recommended |
|
| Cone Type | Paper |
|
| Dimensions LxWxH (mm) | 40 x 28.5 x 17.5 |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (in) | 1.575 x 1.122 x 0.689 |
|
| Mounting Style | Wire Leads |
|
| IP Rating | No IP Rating |
|
