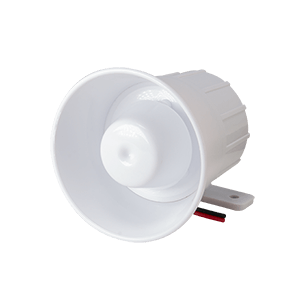

CPS-6964W-1105PM
69 mm, 24 Vdc, 103 dB, Panel Mount Bracket, Driving Circuit, One Tone, White Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Technology | Piezo |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 103 |
|
| Voltage Rating | 24 |
|
| Curr. Consumption (mA) | 80 |
|
| Mounting Style | Wire Leads |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Driving Circuit | Yes |
|
| Dimensions LxWxH (mm) | 69 x 69 x 64 |
|
| Dimensions LxWxH (in) | 2.72 x 2.72 x 2.52 |
|
| IP Rating | No IP Rating |
|
| Series | CPS-6964X-X105PM |
|
