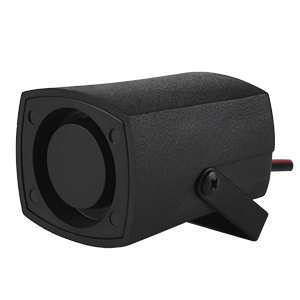

CPS-5952-105PM
40 mm, 12 Vdc, 105 dB, Panel Mount, Driving Circuit, Warble Tone, Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Technology | Piezo |
|
| Sound Pressure (dB) | 105 |
|
| Curr. Consumption (mA) | 100 |
|
| Mounting Style | Wire Leads |
|
| Rated Frequency (Hz) | 2650 |
|
| Shape | Rectangular |
|
| Driving Circuit | Yes |
|
| Washable | No |
|
| Dimensions LxWxH (in) | 1.77 x 1.57 x 2.32 |
|
| Dimensions LxWxH (mm) | 45 x 40 x 59 |
|
| IP Rating | No IP Rating |
|
