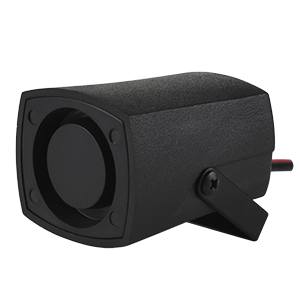

CPS-5952-100PM
40 mm, 24 Vdc, 100 dB, Wire Leads, Driving Circuit, Warble Tone, Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Siren |
|
| Technology | Piezo |
|
| Voltage Rating | 24 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 100 |
|
| Curr. Consumption (mA) | 50 |
|
| Rated Frequency (Hz) | 2650 |
|
| Mounting Style | Wire Leads |
|
| Shape | Rectangular |
|
| Driving Circuit | Yes |
|
| Washable | No |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (in) | 1.77 x 1.57 x 2.32 |
|
| Dimensions LxWxH (mm) | 45 x 40 x 59 |
|
| IP Rating | No IP Rating |
|
| Special Features | No Special Features |
|
| Series | N/A |
|
