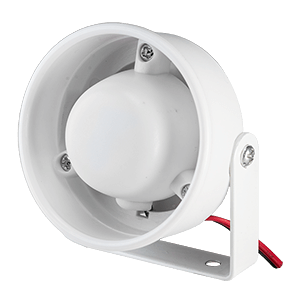

CPS-5933W-6105PM
59 mm, 24 Vdc, 90 dB, Panel Mount Bracket, Driving Circuit, Six Tone, White Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Technology | Piezo |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 90 |
|
| Voltage Rating | 24 |
|
| Curr. Consumption (mA) | 130 |
|
| Mounting Style | Wire Leads |
|
| Shape | Round |
|
| Illumination | No |
|
| Driving Circuit | Yes |
|
| Washable | No |
|
| Dimensions LxWxH (in) | 2.32 x 2.32 x 1.3 |
|
| Dimensions LxWxH (mm) | 59 x 59 x 33 |
|
| IP Rating | No IP Rating |
|
| Series | CPS-5933X-X105PM |
|
Technical Docs
DatasheetAll Buzzers Categories
