CPS-5447W-1105PM

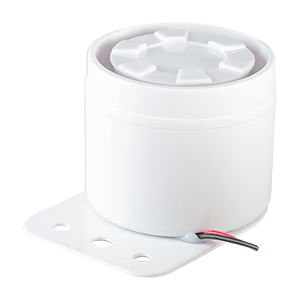

54 mm, 12 Vdc, 103 dB, Panel Mount Bracket, Driving Circuit, One Tone, White Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Siren |
|
| Technology | Piezo |
|
| Sound Pressure (dB) | 103 |
|
| Curr. Consumption (mA) | 150 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Operating Temp Range (°C) | -40 ~ 80 |
|
| Mounting Style | Wire Leads |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Driving Circuit | Yes |
|
| Dimensions LxWxH (mm) | 54 x 54 x 47.6 |
|
| Dimensions LxWxH (in) | 2.13 x 2.13 x 1.87 |
|
| IP Rating | No IP Rating |
|
| Series | CPS-5447X-1105PM |
|
