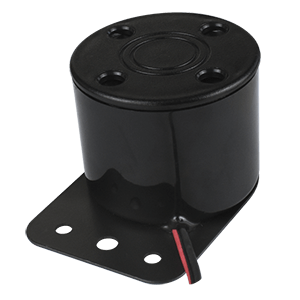

CPS-5248-105PM
53 mm, 12 Vdc, 103 dB, Wire Leads, Driving Circuit, Warble Tone, Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Siren |
|
| Technology | Piezo |
|
| Sound Pressure (dB) | 103 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Curr. Consumption (mA) | 160 |
|
| Mounting Style | Wire Leads |
|
| Rated Frequency (Hz) | 2650 |
|
| Shape | Round |
|
| Driving Circuit | Yes |
|
| Washable | No |
|
| Operating Temp Range (°C) | -20 ~ 70 |
|
| Dimensions LxWxH (in) | 2.09 x 2.09 x 1.71 |
|
| Dimensions LxWxH (mm) | 53 x 53 x 42 |
|
| IP Rating | No IP Rating |
|
