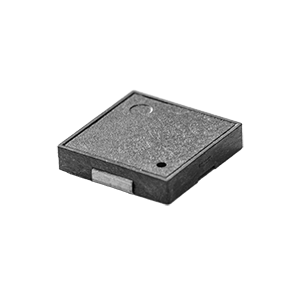

CPT-9019B-SMT-TR
9 mm, 25 Vp-p Vdc, 75 dB, Surface Mount (SMT), Piezo Audio Transducer Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| Input Type | Vp-p |
|
| Sound Pressure (dB) | 75 |
|
| Voltage Rating | 3 |
|
| Curr. Consumption (mA) | 1 |
|
| Mounting Style | Surface Mount |
|
| Shape | Square |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 9 x 9 x 1.9 |
|
| Dimensions LxWxH (in) | 0.35 x 0.35 x 0.07 |
|
| IP Rating | No IP Rating |
|
| Buzzer Type | Audio Transducer |
|
