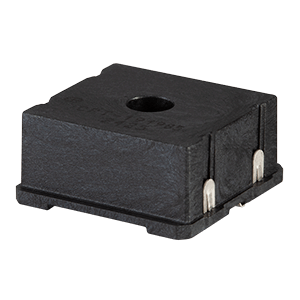

CPT-191985-SMT-TR Piezo Audio Transducer Buzzer
CPT-191985-SMT-TR Piezo Audio Transducer Buzzer
CPT-191985-SMT-TR Piezo Audio Transducer Buzzer Alternate View

CPT-191985-SMT-TR

19 mm, 12 Vp-p, 88 dB, Surface Mount, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Rated Voltage 12
Input Type Vp-p
Sound Pressure (dB) 88
Mounting Style Surface Mount
Curr. Consumption (mA) 38
Shape Round
Washable No
Driving Circuit No
Dimensions LxWxH (mm) 19 x 19 x 8.7
Dimensions LxWxH (in) 0.75 x 0.75 x 0.34
IP Rating No IP Rating

Technical Docs

Datasheet
