CPE-121

CPE-121

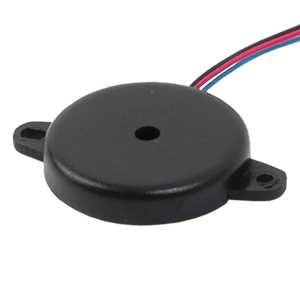

24 mm, 3~28 V, 83 dB, 4.5 kHz, Panel Mount w/Wire Leads, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vdc
Sound Pressure (dB) 83
Voltage Rating 12
Curr. Consumption (mA) 13
Mounting Style Panel Mount
Shape Round
Dimensions LxWxH (mm) 24 x 24 x 5
Dimensions LxWxH (in) 0.94 x 0.94 x 0.2
Washable No
IP Rating No IP Rating

Technical Docs

Datasheet 3D Model
