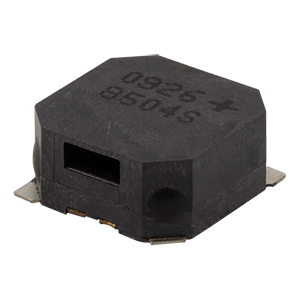

CMT-8504SP-SMT-TR
8.5 mm, 3.6 Vo-p, 87 dB, Surface Mount, Magnetic Audio Transducer Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Transducer |
|
| Sound Pressure (dB) | 87 |
|
| Voltage Rating | 3.6 |
|
| Input Type | Vo-p |
|
| Curr. Consumption (mA) | 100 |
|
| Mounting Style | Surface Mount |
|
| Shape | Square |
|
| Driving Circuit | No |
|
| Washable | No |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (mm) | 8.5 x 8.5 x 4 |
|
| IP Rating | No IP Rating |
|
