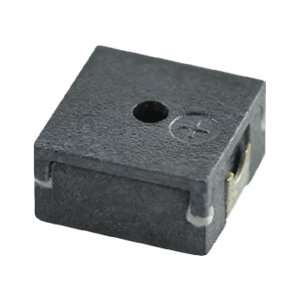

CMT-4023S-SMT-TR
4 mm, 3 Vo-p, 70 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer
The CMT-4023S-SMT-TR is a magnetic transducer buzzer housed in a compact 4 mm x 4 mm surface mount package. Featuring a low profile of 2 mm, this micro buzzer is among the smallest in the industry and ideal for portable equipment applications.
Features
| Compact footprint |
| Low profile |
| Externally driven |
| Reflow solder compatible |
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vo-p |
|
| Voltage Rating | 3 |
|
| Sound Pressure (dB) | 70 |
|
| Mounting Style | Surface Mount |
|
| Curr. Consumption (mA) | 90 |
|
| Shape | Square |
|
| Dimensions LxWxH (mm) | 4 x 4 x 2 |
|
| Dimensions LxWxH (in) | 0.16 x 0.16 x 0.08 |
|
| Washable | No |
|
| Buzzer Type | Audio Transducer |
|
