CEP-1116

CEP-1116

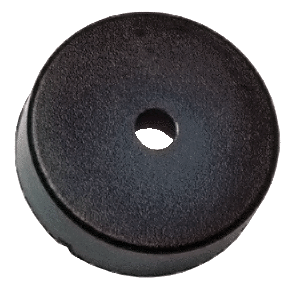

30 mm, 30 V, 93 dB, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 90
Mounting Style Through Hole
Curr. Consumption (mA) 8
Operating Temp Range (°C) -30 ~ 85
Shape Round
Dimensions LxWxH (mm) 30 x 30 x 10
Dimensions LxWxH (in) 1.18 x 1.18 x 0.39
Washable No
