CEP-1114

CEP-1114

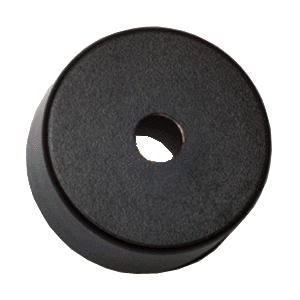

30 mm, 30 V, 93 dB, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 93
Mounting Style Through Hole
Curr. Consumption (mA) 11
Operating Temp Range (°C) -30 ~ 80
Shape Round
Dimensions LxWxH (mm) 30 x 30 x 13.5
Dimensions LxWxH (in) 1.18 x 1.18 x 0.53
Washable No
