Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vo-p |
|
| Voltage Rating | 12 |
|
| Sound Pressure (dB) | 97 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 40 |
|
| Operating Temp Range (°C) | -20 ~ 60 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 16 x 16 x 14 |
|
| Dimensions LxWxH (in) | 0.63 x 0.63 x 0.55 |
|
| Washable | Yes |
|

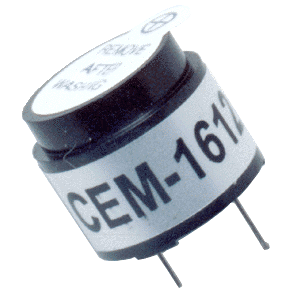

| Buzzer Type | Audio Transducer |
|
