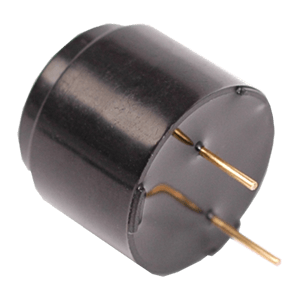

CX-1612C
16 mm, 12 V, 85 dB, 2.2 kHz, Through Hole, Sealed, Driving Circuit, Magnetic Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| Input Type | Vdc |
|
| Rated Voltage | 12 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 35 |
|
| Rated Frequency (Hz) | 2200 |
|
| Operating Temp Range (°C) | -20 ~ 60 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 16 x 16 x 14 |
|
| Dimensions LxWxH (in) | 0.63 x 0.63 x 0.55 |
|
| Washable | Yes |
|
