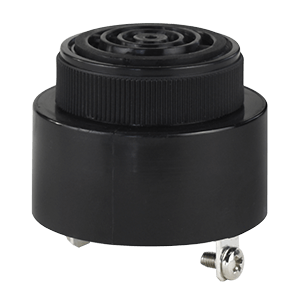

CPI-4232-76ST
42.5 mm, 110 Vdc/Vac, 76dB, Panel Mount, Driving Circuit, Pulsing Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Sound Pressure (dB) | 76 |
|
| Voltage Rating | 110 |
|
| Input Type | Vdc/Vac |
|
| Curr. Consumption (mA) | 20 |
|
| Mounting Style | Panel Mount |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Dimensions LxWxH (in) | 1.67 x 1.67 x 1.28 |
|
| IP Rating | No IP Rating |
|
| Rated Frequency (Hz) | 2800 |
|
| Dimensions LxWxH (mm) | 42.5 x 42.5 x 32.5 |
|
