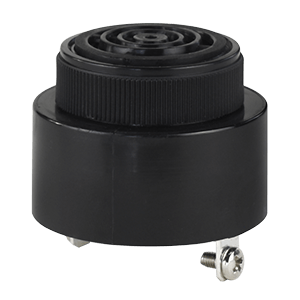

CPI-4232-70ST
42.5 mm, 12 Vdc, 70 dB, Panel Mount, Driving Circuit, Piezo Audio Indicator Chime Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Sound Pressure (dB) | 70 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Curr. Consumption (mA) | 11 |
|
| Mounting Style | Panel Mount |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Dimensions LxWxH (in) | 1.67 x 1.67 x 1.28 |
|
| IP Rating | No IP Rating |
|
| Rated Frequency (Hz) | 2900 |
|
| Dimensions LxWxH (mm) | 42.5 x 42.5 x 32.5 |
|
