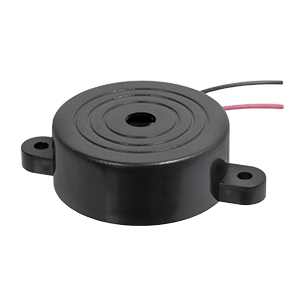

CPI-4116-90PM
41.8 mm, 12 Vdc, 92 dB, Panel Mount, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Sound Pressure (dB) | 92 |
|
| Rated Frequency (Hz) | 2800 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Curr. Consumption (mA) | 10 |
|
| Mounting Style | Panel Mount |
|
| Shape | Round |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Dimensions LxWxH (mm) | 41.8 x 41.8 x 16 |
|
| Washable | No |
|
| Dimensions LxWxH (in) | 1.65 x 1.65 x 0.63 |
|
| Operating Temp Range (°C) | -20 ~ 60 |
|
| Special Features | No Special Features |
|
| IP Rating | No IP Rating |
|
| Series | N/A |
|
