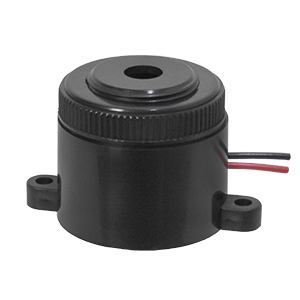

CPI-2825S-85PM
28 mm, 12 Vdc, 85 dB, Panel Mount, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 85 |
|
| Voltage Rating | 12 |
|
| Curr. Consumption (mA) | 10 |
|
| Rated Frequency (Hz) | 3500 |
|
| Mounting Style | Panel Mount |
|
| Shape | Round |
|
| Illumination | No |
|
| Dimensions LxWxH (mm) | 28 x 28 x 25 |
|
| Dimensions LxWxH (in) | 1.1 x 1.1 x 0.98 |
|
| Washable | No |
|
| IP Rating | No IP Rating |
|
