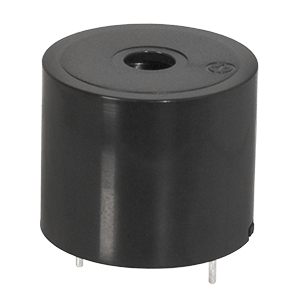

CPI-2316-85T
23 mm, 12 Vdc, 85 dB, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 85 |
|
| Voltage Rating | 12 |
|
| Curr. Consumption (mA) | 10 |
|
| Rated Frequency (Hz) | 3000 |
|
| Mounting Style | Through Hole |
|
| Shape | Round |
|
| Illumination | No |
|
| Dimensions LxWxH (mm) | 23 x 23 x 16 |
|
| Dimensions LxWxH (in) | 0.91 x 0.91 x 0.63 |
|
| Washable | No |
|
| IP Rating | No IP Rating |
|
