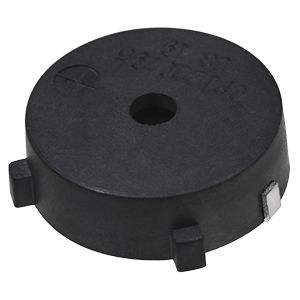

CPI-2207-95-SMT-TR
22.1 mm, 12 Vdc, 95 dB, Surface Mount, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 95 |
|
| Voltage Rating | 12 |
|
| Curr. Consumption (mA) | 12 |
|
| Mounting Style | Surface Mount |
|
| Shape | Round |
|
| Illumination | No |
|
| Washable | No |
|
| Dimensions LxWxH (in) | 0.87 x 0.87 x 0.28 |
|
| IP Rating | No IP Rating |
|
| Rated Frequency (Hz) | 4000 |
|
| Buzzer Type | Audio Indicator |
|
| Dimensions LxWxH (mm) | 22.1 x 22.1 x 7 |
|
