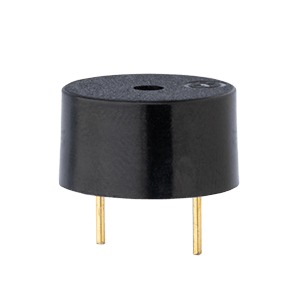

CPI-148-24-90T-67
13.9 mm, 24 Vdc, 90 dB, Through Hole, Piezo Audio Indicator Buzzer
The CPI-148-24-90T-67 is a waterproof piezo indicator buzzer sporting a 13.9 mm diameter package. With a height of 7.5 mm, this waterproof buzzer features an IP67 rating and an SPL of 90 dB at 10 cm, making it ideal for a range of industrial and outdoor applications.
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 90 |
|
| Voltage Rating | 24 |
|
| Curr. Consumption (mA) | 20 |
|
| Mounting Style | Through Hole |
|
| Shape | Round |
|
| Illumination | No |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (in) | 0.55 x 0.55 x 0.3 |
|
| Dimensions LxWxH (mm) | 13.9 x 13.9 x 7.5 |
|
| IP Rating | IP67 |
|
| Washable | Yes |
|
| Rated Frequency (Hz) | 4100 |
|
| Buzzer Type | Audio Indicator |
|
