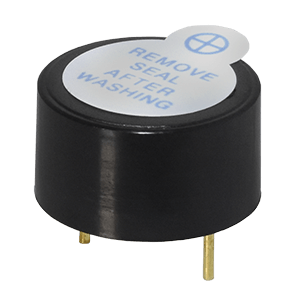

CPI-1375-80T
13.8 mm, 12 Vdc, 80 dB, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 80 |
|
| Voltage Rating | 12 |
|
| Curr. Consumption (mA) | 7 |
|
| Mounting Style | Through Hole |
|
| Shape | Round |
|
| Illumination | No |
|
| Dimensions LxWxH (mm) | 13.8 x 13.8 x 7.5 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Dimensions LxWxH (in) | 0.54 x 0.54 x 0.3 |
|
| Washable | Yes |
|
| IP Rating | No IP Rating |
|
| Rated Frequency (Hz) | 4000 |
|
| Buzzer Type | Audio Indicator |
|
