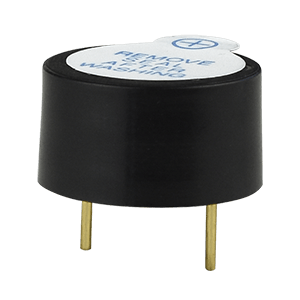

CPI-137-12T
13 mm, 12 Vdc, 92 dB, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 92 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 18 |
|
| Shape | Round |
|
| Illumination | No |
|
| Rated Frequency (Hz) | 4300 |
|
| Washable | Yes |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (mm) | 13 x 13 x 7.5 |
|
| Dimensions LxWxH (in) | 0.51 x 0.51 x 0.29 |
|
| IP Rating | No IP Rating |
|
