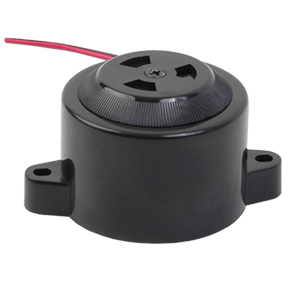

CPE-960
50 mm, 3~16 V, 100 dB, 2.5 kHz, Panel Mount w/Tabs, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Sound Pressure (dB) | 100 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 58 |
|
| Rated Frequency (Hz) | 2500 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 50 x 50 x 37.5 |
|
| Dimensions LxWxH (in) | 1.97 x 1.97 x 1.48 |
|
| Washable | No |
|
