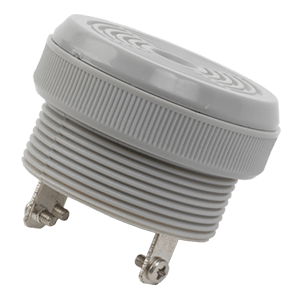

CPE-755S
36.5 mm, 12 Vdc, 85, 80 dB, 3.6 kHz, Panel Mount w/Screw Terminal, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Sound Pressure (dB) | 80, 85 |
|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 8 |
|
| Rated Frequency (Hz) | 3600 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 36.5 x 36.5 x 23.5 |
|
| Dimensions LxWxH (in) | 1.44 x 1.44 x 0.93 |
|
| Washable | No |
|
