CPE-755P

CPE-755P

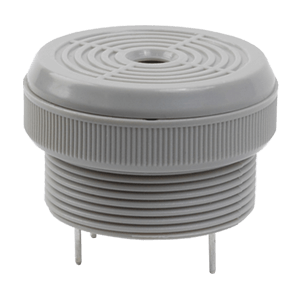

36.5 mm, 6~28 V, 85 dB, 3.6 kHz, Panel Mount, Driving Circuit, Piezo Audio Indicator Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit Yes
Illumination No
Input Type Vdc
Rated Voltage 12
Sound Pressure (dB) 85
Mounting Style Panel Mount
Curr. Consumption (mA) 8
Rated Frequency (Hz) 3600
Operating Temp Range (°C) -30 ~ 80
Shape Round
Dimensions LxWxH (mm) 36.5 x 36.5 x 23.5
Dimensions LxWxH (in) 1.44 x 1.44 x 0.93
Washable No

Technical Docs

Datasheet 3D Model
