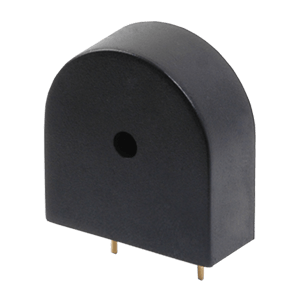

CPE-522
24 mm, 3~20 V, 75 dB, 3.2 kHz, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Sound Pressure (dB) | 75 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Curr. Consumption (mA) | 10 |
|
| Mounting Style | Through Hole |
|
| Operating Temp Range (°C) | -30 ~ 115 |
|
| Shape | Rectangular |
|
| Illumination | No |
|
| Dimensions LxWxH (in) | 0.94 x 0.39 x 0.98 |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 24 x 10 x 25 |
|
| IP Rating | No IP Rating |
|
| Rated Frequency (Hz) | 3200 |
|
