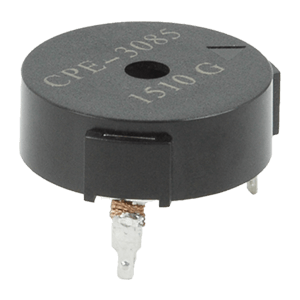

CPE-3085
29.5 mm, 3~28 V, 82 dB, 3.6 kHz, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Illumination | No |
|
| Driving Circuit | Yes |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Sound Pressure (dB) | 82 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 7 |
|
| Rated Frequency (Hz) | 3600 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 29.5 x 29.5 x 10 |
|
| Dimensions LxWxH (in) | 1.16 x 1.16 x 0.39 |
|
| Washable | No |
|
| Buzzer Type | Audio Indicator |
|
