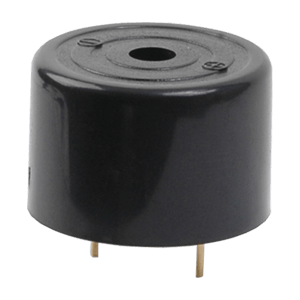

CPE-203
24.5 mm, 3~20 V, 86 dB, 3.4 kHz, Through Hole, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Sound Pressure (dB) | 86 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 9 |
|
| Rated Frequency (Hz) | 3400 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 24.5 x 24.5 x 16 |
|
| Dimensions LxWxH (in) | 0.96 x 0.96 x 0.63 |
|
| Washable | No |
|
