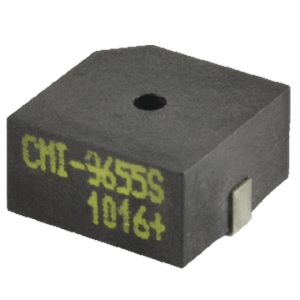

CMI-9655S-SMT-TR
9.6 mm, 5 Vdc, 85 dB, 2.7 kHz, Surface Mount (SMT), Driving Circuit, Magnetic Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Illumination | No |
|
| Driving Circuit | Yes |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 5 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Surface Mount |
|
| Curr. Consumption (mA) | 30 |
|
| Rated Frequency (Hz) | 2700 |
|
| Shape | Square |
|
| Dimensions LxWxH (mm) | 9.6 x 9.6 x 5 |
|
| Dimensions LxWxH (in) | 0.38 x 0.38 x 0.2 |
|
| Washable | Yes |
|
| Buzzer Type | Audio Indicator |
|
