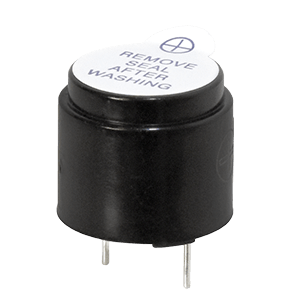

CMI-1614-1285T
16 mm, 12 Vdc, 85 dB, Through Hole, Driving Circuit, Magnetic Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Sound Pressure (dB) | 85 |
|
| Rated Frequency (Hz) | 2200 |
|
| Voltage Rating | 12 |
|
| Input Type | Vdc |
|
| Curr. Consumption (mA) | 30 |
|
| Mounting Style | Through Hole |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 16 x 16 x 14 |
|
| Illumination | No |
|
| Illumination Color | None |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Washable | Yes |
|
| Dimensions LxWxH (in) | 0.63 x 0.63 x 0.16 |
|
| Special Features | No Special Features |
|
| IP Rating | No IP Rating |
|
| Series | N/A |
|
