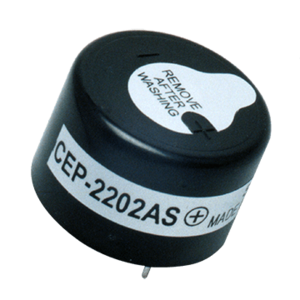

CEP-2202AS
24.2 mm, 3~20 V, 85 dB, 3.0 kHz, Through Hole, Sealed, Driving Circuit, Piezo Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Buzzer Type | Audio Indicator |
|
| Driving Circuit | Yes |
|
| Illumination | No |
|
| IP Rating | No IP Rating |
|
| Input Type | Vdc |
|
| Voltage Rating | 12 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Through Hole |
|
| Curr. Consumption (mA) | 11 |
|
| Illumination Color | None |
|
| Rated Frequency (Hz) | 3000 |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 24.2 x 24.2 x 16 |
|
| Dimensions LxWxH (in) | 0.95 x 0.95 x 0.63 |
|
| Special Features | No Special Features |
|
| Series | N/A |
|
| Washable | Yes |
|
