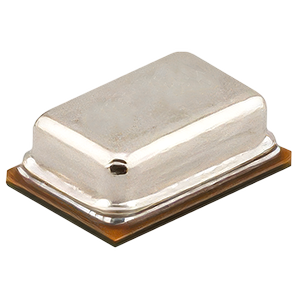

CMM-2718AB-381S-TR
2.75 x 1.85 mm, Omnidirectional, Analog, Bottom Port, Surface Mount, 2 Vdc, -38 ±1 dB, MEMS Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Directivity | Omnidirectional |
|
| Port Location | Bottom |
|
| Sensitivity Tolerance (dB) | ±1 |
|
| Sensitivity Reduction (dB) | -1 |
|
| Curr. Consumption (µA) | 130 |
|
| Operating Voltage (Vdc) | 2 |
|
| Operating Freq. (Hz) | 20 ~ 10000 |
|
| Signal : Noise Ratio (dBA) | 61 |
|
| Output Impedance (Ω) | 170 |
|
| Termination | Surface Mount |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 2.75 x 1.85 x 0.95 |
|
| IP Rating | No IP Rating |
|
