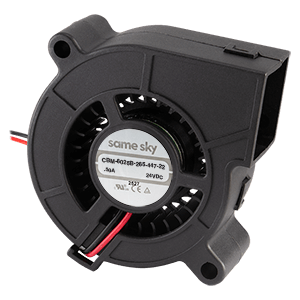

CBM-6025B-265-447-22
24 V, 230 mA, 60 x 60 x 25 mm, Ball Bearing, Tachometer Signal, PWM Control Signal, Dc Centrifugal Blower
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this centrifugal blower bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 11.89 |
|
| Rated Speed (RPM) | 6500 |
|
| Static Pressure (inH2O) | 1.64 |
|
| Noise (dBA) | 44.7 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 350 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 60 x 60 x 25 |
|
| IP Rating | No IP Rating |
|
| Series | CBM-60B |
|
